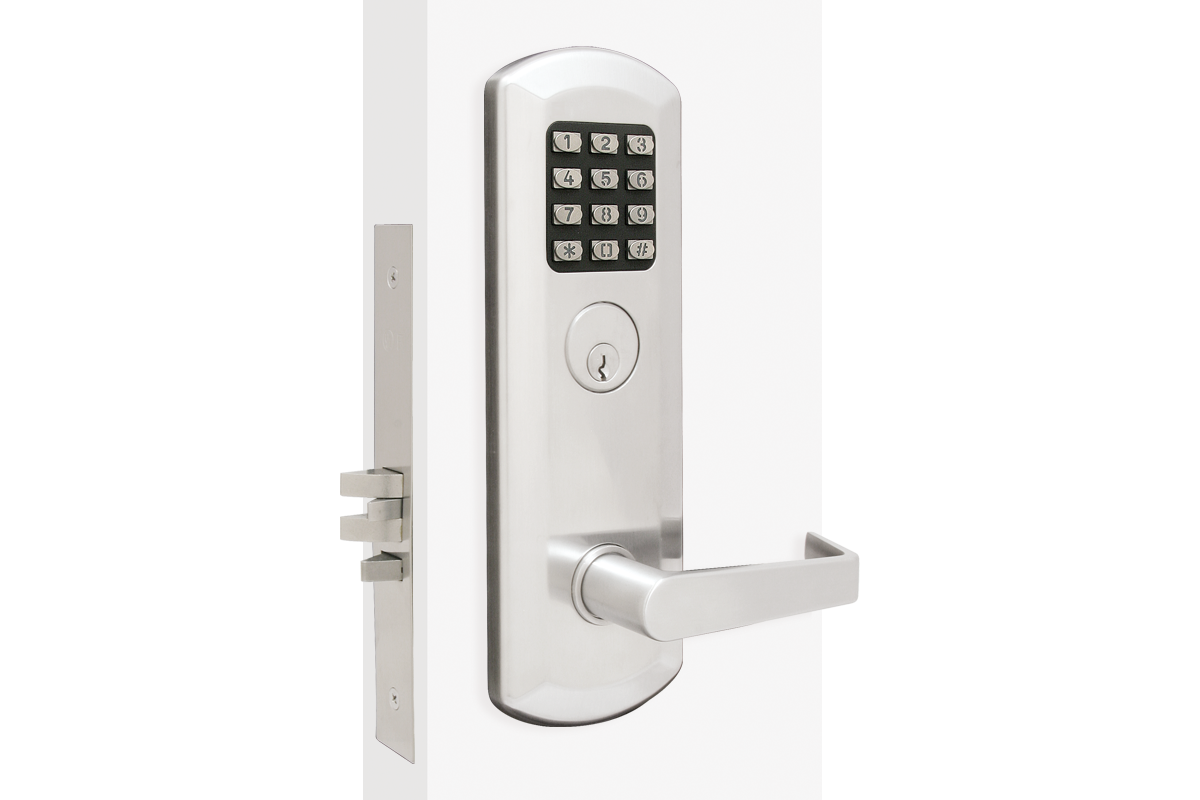

TOWNSTEEL - XME-2020 Standalone Heavy Duty Mortise Lockset Keypad Digital Door Lock - Auto lock Feature ANSI Grade-1

Product Details:
The XME2020 is a standalone electronic function lock that provides keypad technology integrated with an ANSI Grade 1 heavy duty mortise lockset for greater security. Keypad technology simplifies the management of the system and provides ease of use. Maximum code capacity per lock includes 1 master code, 10 manager codes, 90 user codes and 5 service codes. The XME2020 provides two remote control terminals; one for a fire alarm system and the other for remote release by push button. The XME2020 is quick and easy to program.

Product Electronic specifications:

• Application: For classroom lockdown, full indoor and outdoor.
• Master code per lock: 1
• Master code capacity per lock: 10.
• User code capacity per lock : 90.
• Manager code capacity per lock: 5.
• Communication: Multi-colored LED and Sound.
• Power supply: 4AA battery.
• Battery life: Up to 2 years
• Operating temperature: -31° to 151° F (-35° to 66°C)

Product Mechanical specifications:

• Door Thickness: 1-3/4”standard, other upon request.
• Backset: 2-3/4”.
• Trim: Outside lever rotates up and down in locked and unlocked positions.
• Strike: ASA Strike standard, 1-1/4” X 4-7/8”.
• Latch bolt: Stainless Steel, split, anti-friction, ¾” projection.
• Guard bolt: Stainless Steel.
• Faceplate:1-1/8” x 8”.
• Escutcheon: Wrought steel or zinc alloy, plated to match finish symbols.
• Lever: Forged brass or cast zinc, plated to match finish symbols.
• Lever Style: Sentinel (S), Quest (Q) and Gala(G), designer lever styles upon request.
• Cylinder:
• 6Pin Schlage "C" Keyway, standard.
• Small Format IC with or without core available, 6 or 7pin core, Best “A” keyway.
• Schlage® Large Format IC less core available.
• Corbin® Large Format IC less core available, for 6pin core.
• Keying: KD standard, KA, MK, GMK, GGMK and construction available.
• Finish: US26D and US10B stocked, other upon request.
• Warranty: 1-year limited for electronic, 5-year limited for finish, 10-year limited for mechanical.

Product Code Compliance:

• ANSI/BHMA A156.2: A156.2-2011 Grade 1 certified.
• ANSI/BHMA A156.25: Meets or exceeds all applicable requirements.
• UL/ULC: UL 10C 3-hour rated.
• BAA: Meets guidelines of the Buy American Act.
• ADA: Meets requirements of the Americans with Disabilities Act.
• RoHS: Meets requirements of EU RoHS Directive 2002/95/EC.
